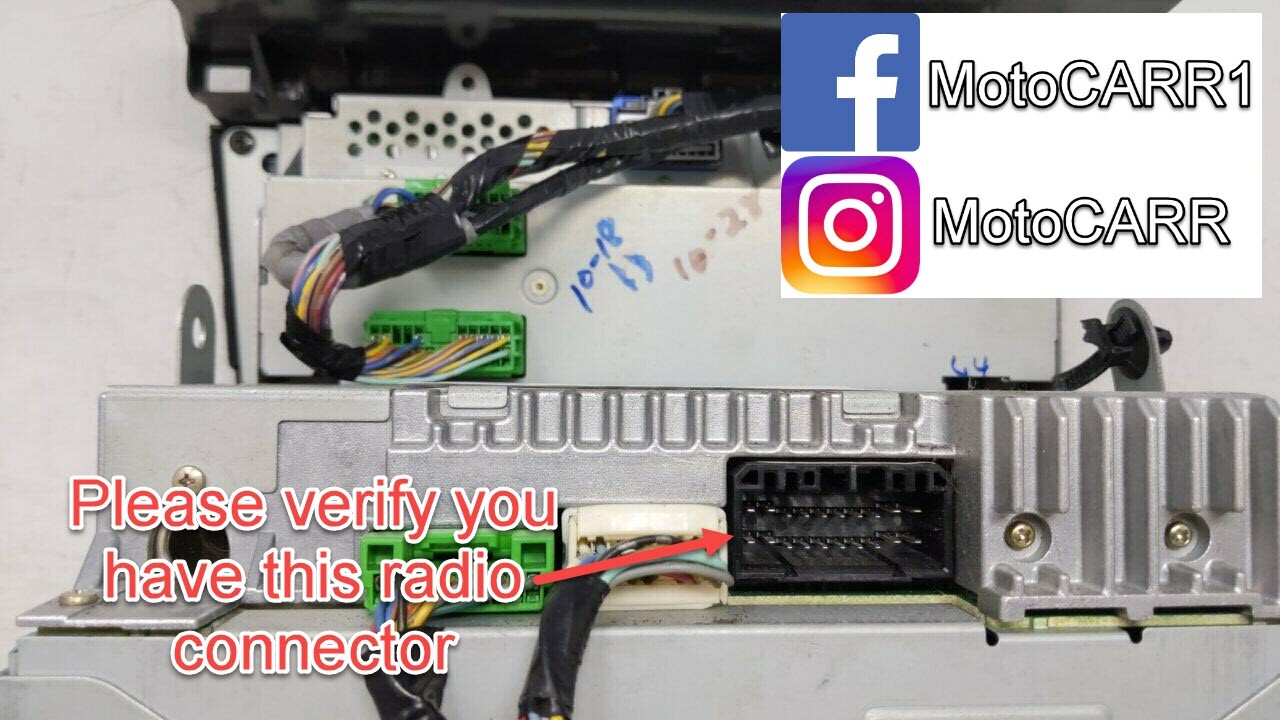

Honda Acura Factory Radio Add A Subwoofer Amplifier Plug & Play Wire Harness

Want to add a subwoofer to your original stereo?

Don’t want or know how to cut into your wiring?




Take the wiring guess work out of the installation with this plug and play wire harness!  Installation is as easy as 1, 2, 3!

1.      Remove your OEM factory radio

2.      Unplug the OEM factory wiring and plug in this wire harness

3.      Reinstall your OEM factory radio

What is it?

This wire harness provides a connection for one set of RCA cables to provide an audio signal to an external amplifier.  Also pre-installed on the harness is a remote amplifier turn on wire.  This wire, along with a set of RCA cables, is run to your aftermarket amplifier.  All that’s left for you to do is connect the main power wire from your battery and ground. (Not included)

What you will receive:

·         One (1) plug and play wire harness

Compatibility Notes:

• Audio volume to the amplifier can be adjusted by the dials on the harness.  For easier access we recommend using an external volume knob.(Not included but we can provide one)

• We use a variety of wire colors for the remote wire.  Regardless of color, rest assured it is for the remote turn on of an amplifier.

• Certain applications benefit from a bass knob to control subwoofer volume independent from the radio as volume is adjusted post amplification.

Compatibility

Make MODEL FROM TO Acura CL 2001 2003 Acura MDX 2005 2006 Acura MDX 2001 2004 Acura NSX 2005 2005 Acura RSX   2002 2006



Acura TL 2007 2008 Acura TL 2004 2006 Acura TL 1999 2003 Acura TSX 2004 2008 Honda Accord  2003 2007 Honda Accord  (lower dash) 2003 2007 Honda Accord 1998 2002 Honda Civic  (DX, excluding Canada)  (with gray dash) 2006 2011 Honda Civic  (DX, excluding Canada)  (with taupe dash) 2006 2011 Honda Civic  (Special Edition) 2005 2005 Honda Civic  (excluding SI and SE models) 2001 2005 Honda Civic Si  (3-door only) 2002 2005 Honda Civic 1999 2000 Honda CR-V 2002 2006 Honda CR-V 1999 2001 Honda Element  (all but LX) 2005 2011 Honda Element  (LX) 2005 2011 Honda Element 2003 2004 Honda Insight 2001 2006 Honda Odyssey 2005 2007 Honda Odyssey  (with nav) 1999 2004 Honda Odyssey  (without nav) 1999 2004 Honda Pilot  (with nav) 2006 2008 Honda Pilot  (without nav) 2006 2008 Honda Pilot 2003 2005 Honda Prelude 1999 2001 Honda Ridgeline  2005 2008 Honda S2000 2000 2009 Isuzu Oasis 1999 1999 Suzuki Aerio 2005 2007 Suzuki Aerio Sedan 2003 2004 Suzuki Aerio 5-door 2003 2004 Suzuki Aerio Sedan 2002 2002 Suzuki Aerio 5-door 2002 2002 Suzuki Grand Vitara  2006 2011 Suzuki Grand Vitara  2003 2005 Suzuki Kizashi 2010 2013 Suzuki SX4 2007 2013 Suzuki XL-7 2003 2006 View more great items
Converter adjustment instructions:

1. After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.
2. Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.
3. Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.
4. Turn the remaining pot to the same position as the previously adjusted pot.
