1995-2010 Single Din Car Stereo Dash Kit + Harness Ford Lincoln Mercury

Single Din Stereo Dash Kit with Speaker Adapter Removal Key for Ford, Lincoln, & Mercury

• Single DIN Install Dash Kit With Harness/ ISO Radio
• Compatible With Select 1995-2010 Ford Lincoln Mercury
• Comes With Oversized Under Radio Storage Pocket
• Specially Designed Patent Pending Side Mount Brackets
• Designed And Contoured To Match Factory Dashboard
• High-Grade ABS Plastic Structure
• Factory Style Texture Design
• All Necessary Hardware Included

1. Radio Housing
2. Radio Housing Trim Plate
3. Radio Housing Brackets
4. (2) 3/8” Phillips Screws

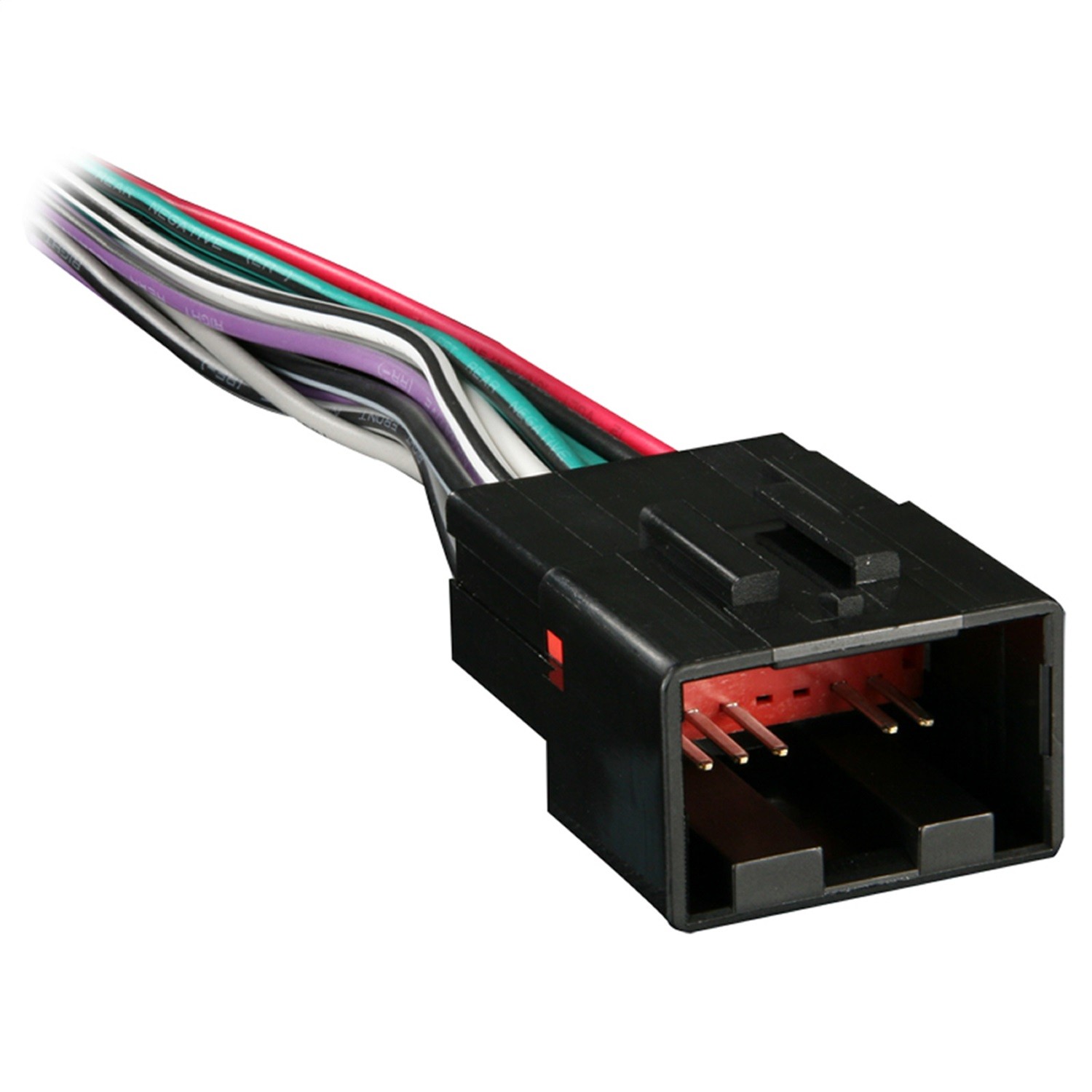

• 16-Pin Plug & One 8-Pin Plug Amplifier Interface Harness
• No Cutting Of Factory Wires Is Necessary
• Color Coded Wires Allows For A Consistent And Simplified Installation
• Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector
• High Quality, ABS Plastic Molded Connector For The Perfect Fit
• Can Be Used To Repair A Cut-Off Or Damaged Wiring Harness

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green With Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White With Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple With Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray With Black Stripe – Right Front Speaker (-)

Ford:
• 1998-2008 Ecoline Van
• 2000-2004 Excursion
• 1998-2002 Expedition
• 2003 Expedition (Early Production Models)
• 1998-2005 Explorer
• 2000-2006 Explorer Sport Trac
• 1999-2003 F-150
• 2004 F-150 Heritage
• 1999-2004 F-250 / F-350
• 2001-2003 Mustang
Lincoln:
• 2003-2005 Aviator
• 2002-2003 Blackwood
•

Mercury:
• 1998-2002 Mercury Grand Marquis
• 1998-2005 Mercury Mountaineer
